Description

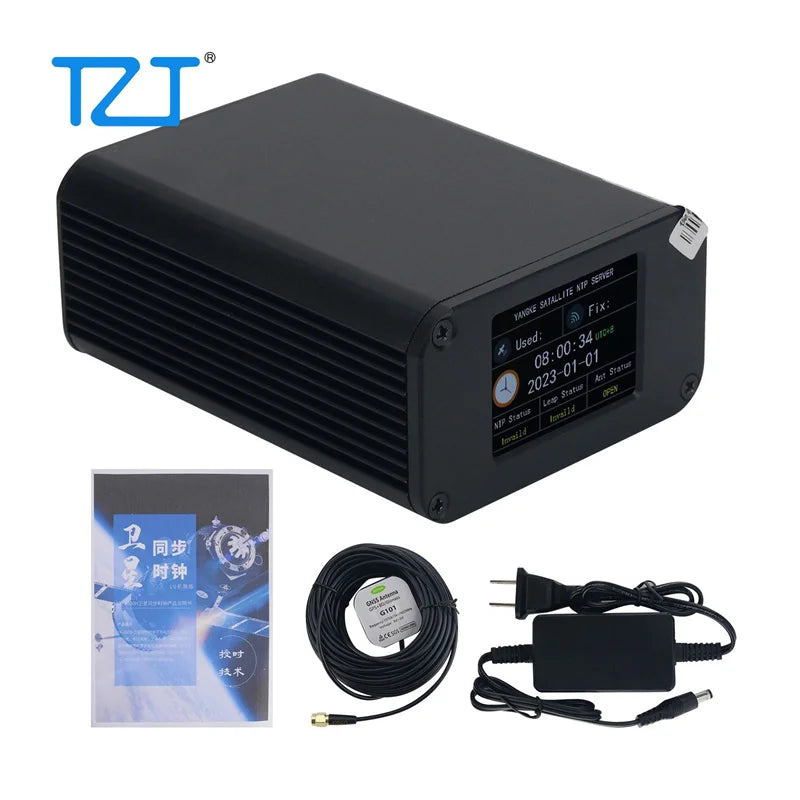

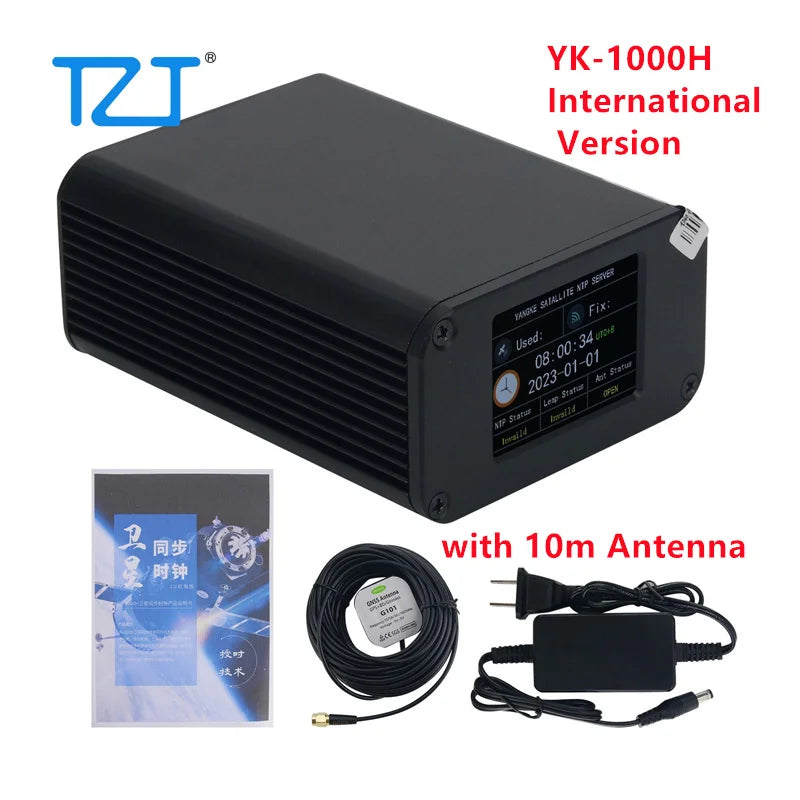

TZT YK-1000H Portable Version/International Version NTP Server Network Time Server with 1 Network Port (10m Antenna) for GPS Beidou
Description:
YK-1000H NTP Server can provide high-precision and high-reliability time synchronization services for scenarios that require high-precision time services, such as power systems, automation systems, telecommunication systems, transportation systems and security monitoring. It can also receive satellite (GPS and Beidou) time signals and provide NTP time services.
Features:
* Using a multi-mode GNSS timing module, it can receive multi-system satellites. The response is fast and it can receive satellite time signals at a fast speed.
* Using AC 220V power supply, it can adapt to different power supply occasions.
* Microsecond accuracy: The error between the output of the second pulse's accurate edge and the edge of the international standard time is less than 0.5us.
* A variety of time format output modules can meet different design needs.
* All signal outputs are photoelectically isolated, with strong anti-interference ability.
* Desktop design: NTP server is flexible and lightweight, not limited by space, making it convenient to use.
Available Interface Type:
* NTP network port
Attention:
1Timing modules are optional to receive: GPS, SBAS, Galileo, Beidou, IMES, QZSS and GLONASS systems.
2 Only international models can use dip switches to adjust display time
Device Structure:
YK-1000H adopts multi-mode satellite system receiving module. It can convert the received satellite positioning system time into a timing signal for power, communication, chemical, security and other equipment.
There is one NTP network output.
Technical Parameters:
GPS / Beidou:
* Cold start first acquisition time: ≤ 2 seconds
* Re-acquisition time after loss of lock: ≤ 1 second
* Automatic positioning time: 1 minute
* Automatic timing time: 1 minute
* Positioning data update rate: Selectable from 1Hz, 2Hz, 4Hz, 8Hz and 16Hz
* Positioning accuracy: less than 50m (1σ)
* Timing accuracy: ± 1us
* Receiving sensitivity: -157.6dBm
Device interface:
* Flexible configuration according to actual application
Internet:
* Interface specifications: 10Base-T/100Base-TX self-adaptive, MDI/MDI-X automatic polarity reversal and IEEE802.3
* Protocols: ARP, ICMP, UDP, NTP and SNTP
Isolation protection:
* Electromagnetic isolation: Ethernet port 1.5kV
* Surge protection: 600W for each output line
Power supply:
* AC 220V
Environmental parameters:
* Operating temperature: -10°C to +70°C; humidity: 10%~90% (no condensation)
* Storage temperature: -40°C to +85°C; humidity: 5%~95% (no condensation)
MTBF:
* >30,000 hours
Interface Transmission Distance:
1. Network Cable:
* It is used for high-quality transmission of NTP clock signals indoors, and the transmission distance is ≤ 100m.
Supported Terminal Devices:
* Suitable for Hikvision, Uniview, Dahua, TP-LINK, Tiandy and Infinova.
* Suitable for all terminal devices that support NTP protocol timing.
Package Included:
* 1 x Set of NTP Server
Packaging Details:
* Weight: 1.35kg
