Description
Description:

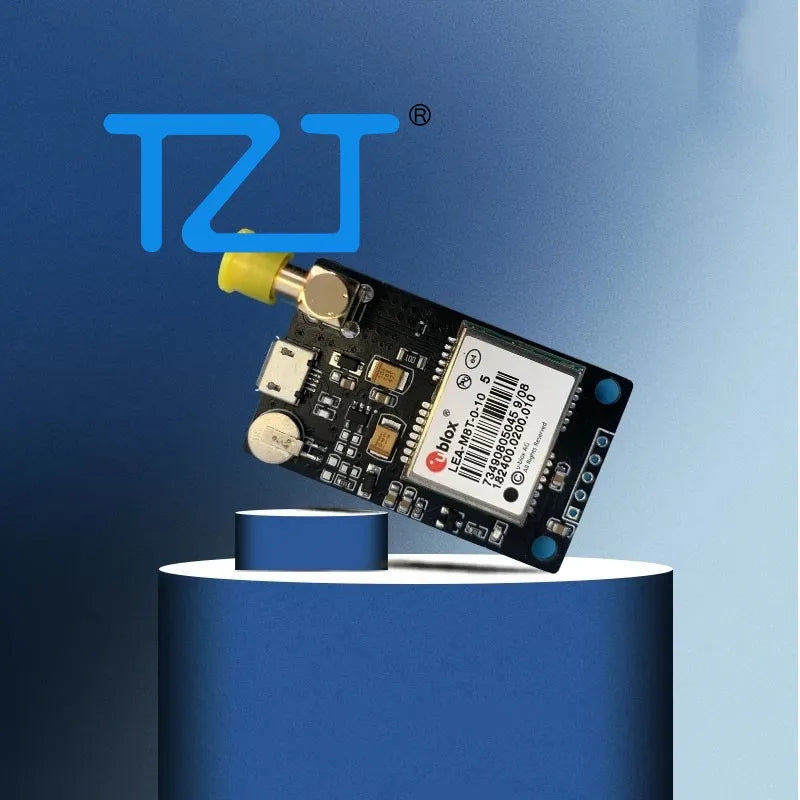

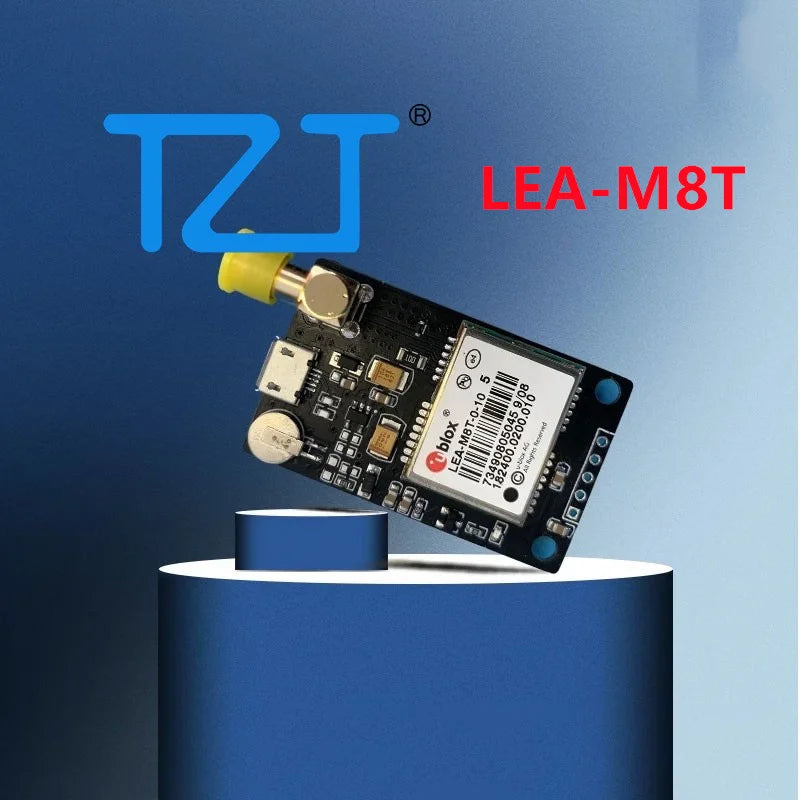

The GNSS development board has a built-in LEA-M8T. The LEA-M8T parallel GNSS module provides high-integrity high-precision timing in demanding applications around the world. It can reduce timing jitter for measurement and fixed-position navigation, even at low signal levels. It is able to stay synchronized with only one satellite in the field of view. It supports low duty cycle operation, reducing power consumption in battery-powered applications.
Hardware Structure:
* Built-in low-ripple LDO can ensure the stable operation of the module. Power can be supplied via USB/UART.
* The antenna interface is impedance matched to ensure that the module is in the best working condition.
* VCC, GND, TXD, RXD and PPS interfaces are introduced to facilitate secondary development in the later stage.
* A backup battery can be installed to ensure the stable operation of the module.
* The development board provides USB and UART communication interfaces for module configuration and data transfer.
Free Welding:
* The TTL serial port at the tail of the module is not soldered by default (with pins). You can contact customer service if the pins need to be welded.
* The module antenna socket is soldered in the same direction as the USB by default, and can also be rotated. If necessary, please contact customer service.
Package Included:
* 1 x Set of Timing Development Board
Packaging Details:
* Weight: 0.22kg
Note:
* Battery is not included.

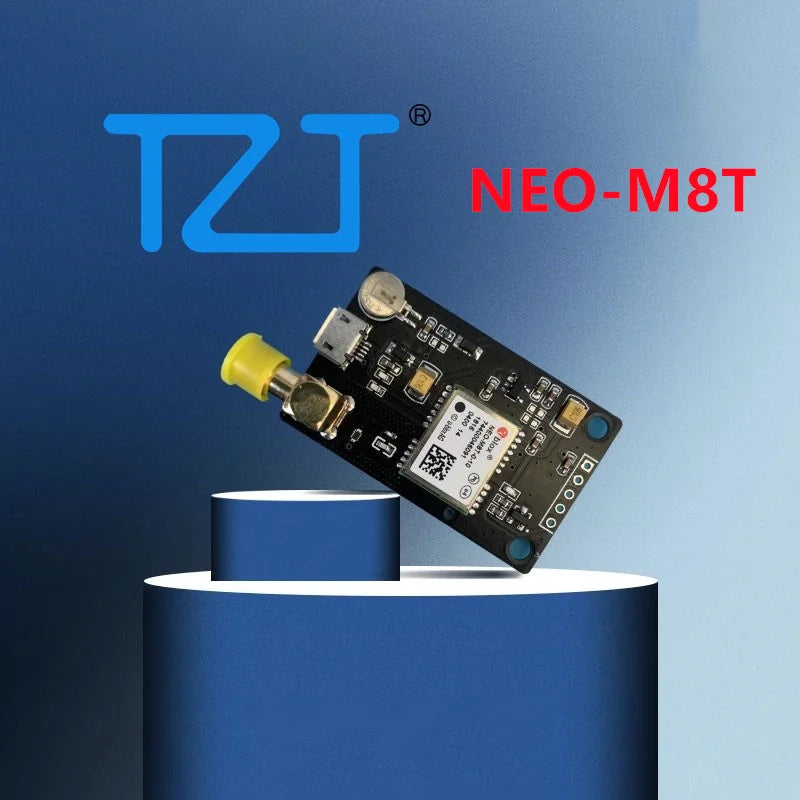

NEO-M8T Timing Development Board GNSS Development Board RTK for GPS Beidou Timing Raw Data Output
Description:
The GNSS development board has a built-in NEO-M8T. The NEO-M8T parallel GNSS module provides high-integrity high-precision timing in demanding applications around the world. It can reduce timing jitter for measurement and fixed-position navigation, even at low signal levels. It is able to stay synchronized with only one satellite in the field of view. It supports low duty cycle operation, reducing power consumption in battery-powered applications.
Hardware Structure:
* Built-in low-ripple LDO can ensure the stable operation of the module. Power can be supplied via USB/UART.
* The antenna interface is impedance matched to ensure that the module is in the best working condition.
* VCC, GND, TXD, RXD and PPS interfaces are introduced to facilitate secondary development in the later stage.
* A backup battery can be installed to ensure the stable operation of the module.
* The development board provides USB and UART communication interfaces for module configuration and data transfer.
Free Welding:
* The TTL serial port at the tail of the module is not soldered by default (with pins). You can contact customer service if the pins need to be welded.
* The module antenna socket is soldered in the same direction as the USB by default, and can also be rotated. If necessary, please contact customer service.
Package Included:
* 1 x Set of Timing Development Board
Packaging Details:
* Weight: 0.22kg
Note:
* Battery is not included.

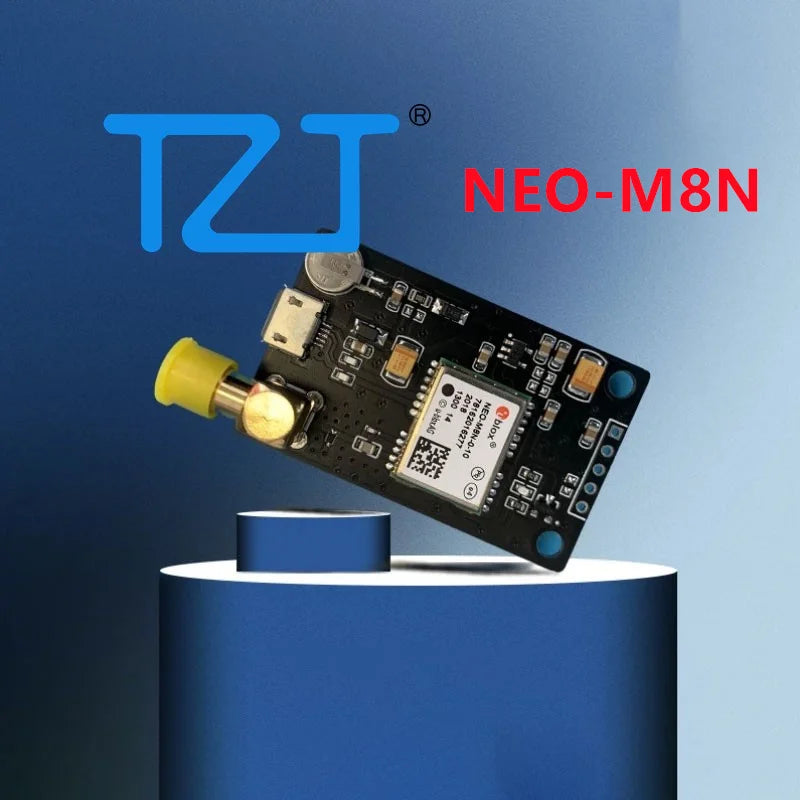

NEO-M8N Timing Development Board Timing Module Development Board Supports GPS Beidou Timing
Features:
* Concurrent reception of GPS/QZSS, GLONASS and Beidou
* Industry leading –167 dBm navigation sensitivity
* Combines low power consumption and high sensitivity
* The timing development board is your ideal choice
Free Welding:
* The TTL serial port at the tail of the module is not soldered by default (with pins). You can contact customer service if the pins need to be welded.
* The module antenna socket is soldered in the same direction as the USB by default, and can also be rotated. If necessary, please contact customer service.
Package Included:
* 1 x Set of Timing Development Board
Packaging Details:
* Weight: 0.22kg
Note:
* Battery is not included.
