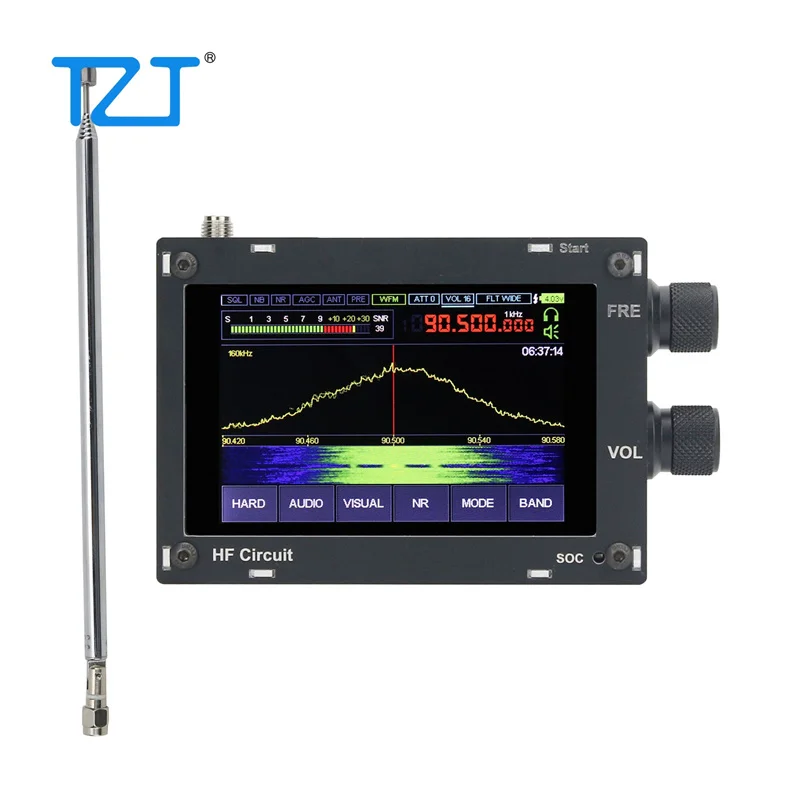

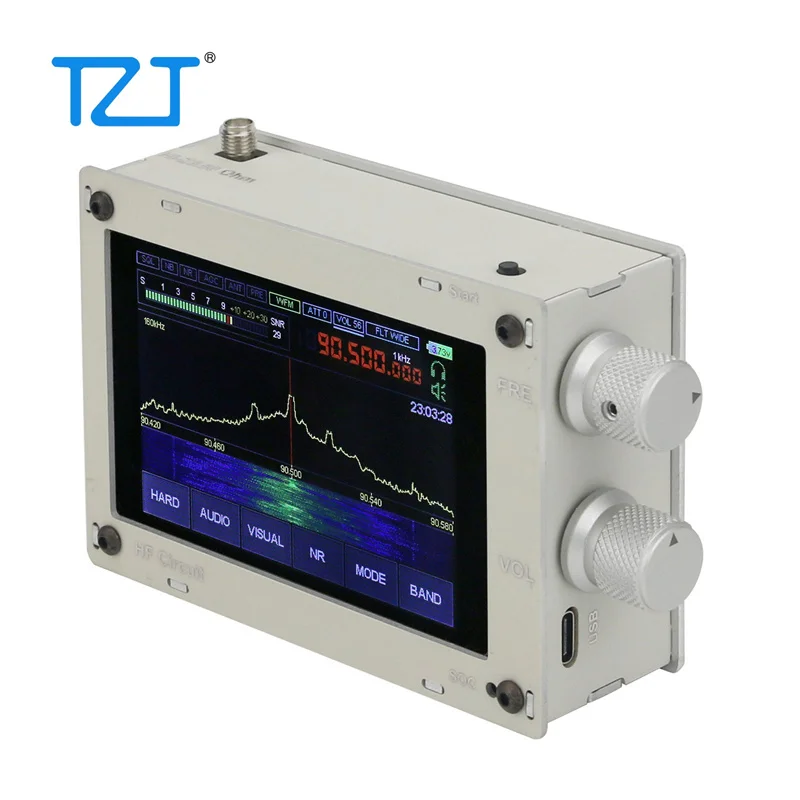

TZT Hifi Audio 50KHz-2GHZ Malachite SDR DSP SDR Receiver Radio 1.10C AM/SSB/NFM/WFM w/ Speaker 3.5" Screen Silver/Black

Without expansion board option:

TZT Hifi Audio 50KHz-2GHZ Malachite SDR DSP SDR Receiver Radio 1.10C AM/SSB/NFM/WFM w/ Speaker 3.5" Screen Silver/Black

Advantages:
1. 3.5-inch capacitive screen
2. Built-in rechargeable lithium battery
3. 4-layer PCB board. Better sensitivity

Features:
- Malachite DSP SDR Receiver
- Capacitive touch screen
- Flash via USB cable
- Supported frequency range: 50KHz-2GHz (200MHz-400MHz is blocked by the author)
- Demodulation mode: AM, SSB, NFM and WFM

Product Parameters:
1) The radio is constructed based on the SDR principle, and the function is determined by loaded software
2) The frequency range is from 50KHz-2GHz
3) All types of analog modulation: AM, SSB (LSB USB), NFM and WFM
4) Powerful functions: variable filter width, adaptive noise suppressor, threshold noise suppressor, Noise Blanker (AGC_Equalizer)
5) Use fully functional chip msi001
6) Powerful stm32h743 with a clock frequency of 480MHz is applied

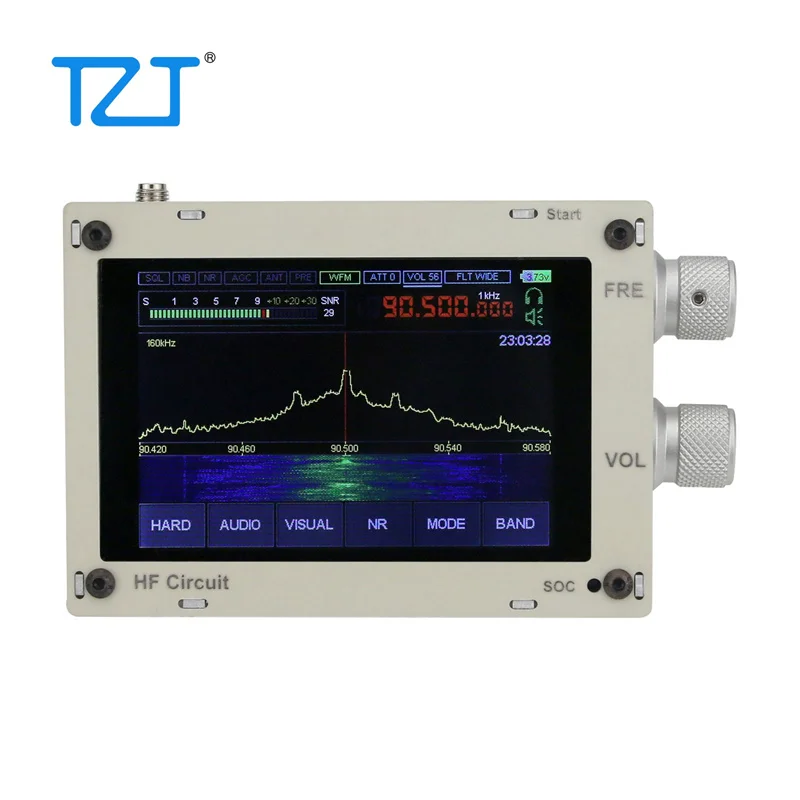

7) 3.5-inch IPS display with touch screen
8) There is a built-in UHF
9) Control 2 encoders with buttons and touch screen

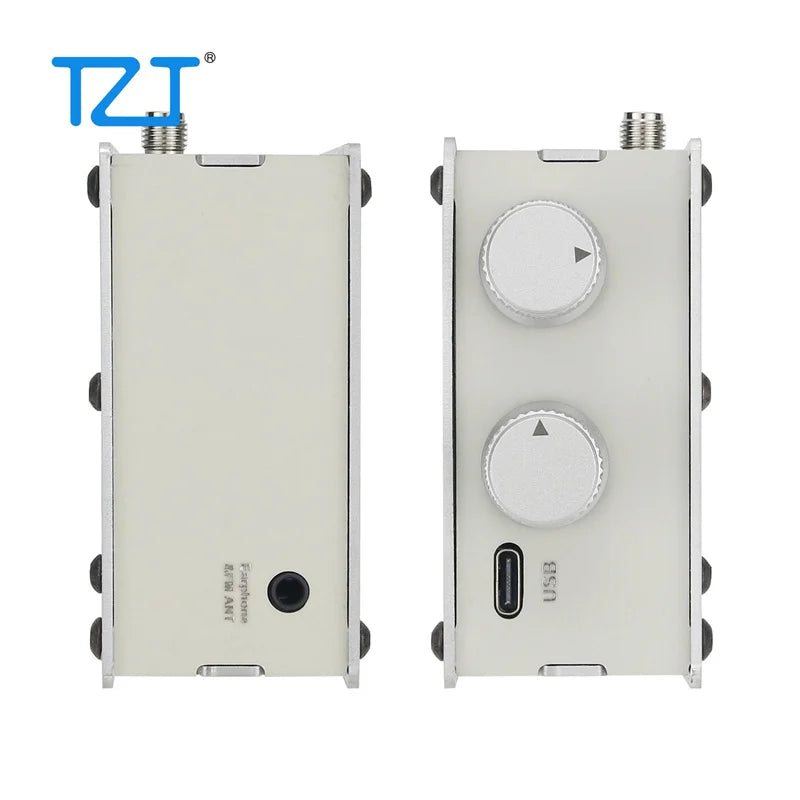

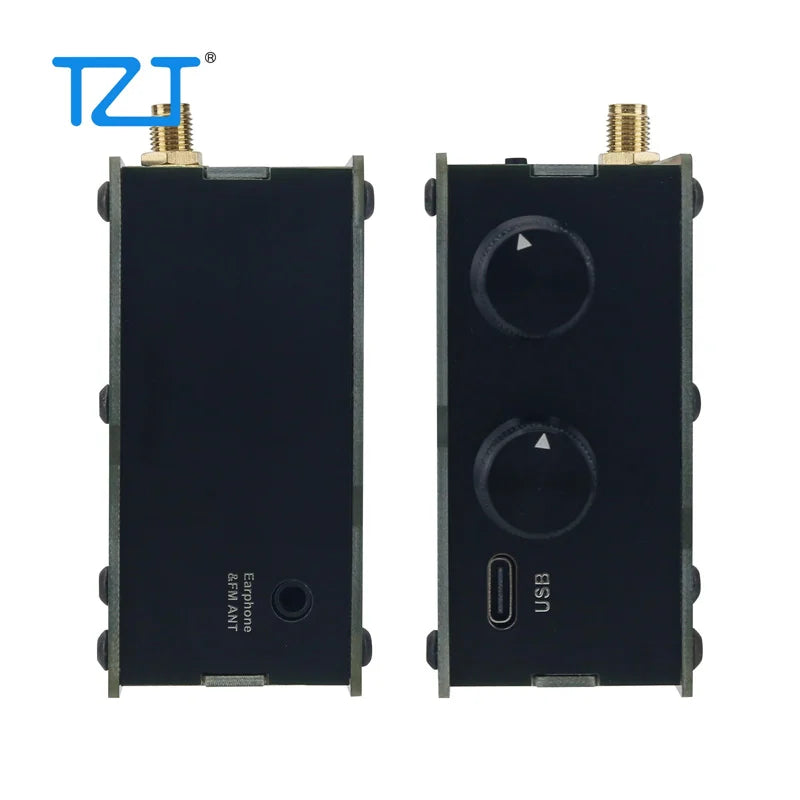

10) The power supply is supplied by the external TYPE-C (for Huawei mobile phone) interface, which can be charged by TYPE-C. The internal lithium battery has a large capacity of 5000mAH (suitable for outdoor use)
11) The current consumption when listening to headphones is 300mA
12) Built-in receiving module In order to improve the HF reception on the antenna, an additional board with a source follower has been developed. The board will be built into the standard receiver design
13) Connect to the computer via USB, you can transmit CAT, IQ and audio
14 160 kHz span, with scalability
15) Sensitivity-Under the condition of up to 250MHz, s / w is 0.3μV = 10dB.
16) Due to the characteristics of the msi001 chip used, the dynamic blocking range is about 85dB.
17) With backlight control
18) Built-in telescopic antenna, exclusive design
19) Product dimensions: 122 x 103 x 29.5mm/4.8 x 4.1 x 1.2"

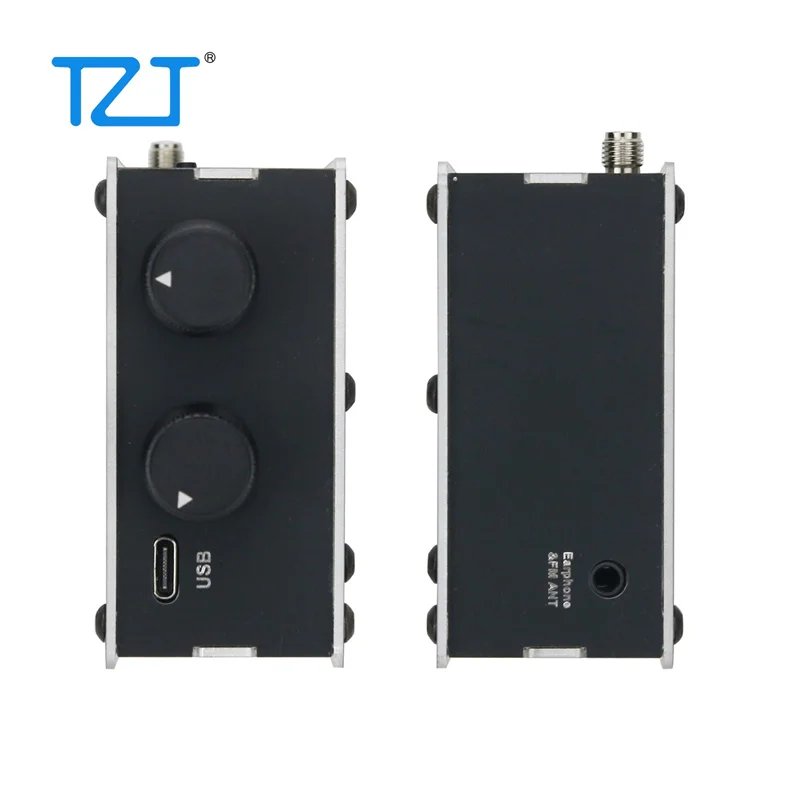

Design Details:
The stability of the screen fixation, the position of knobs, and selected materials

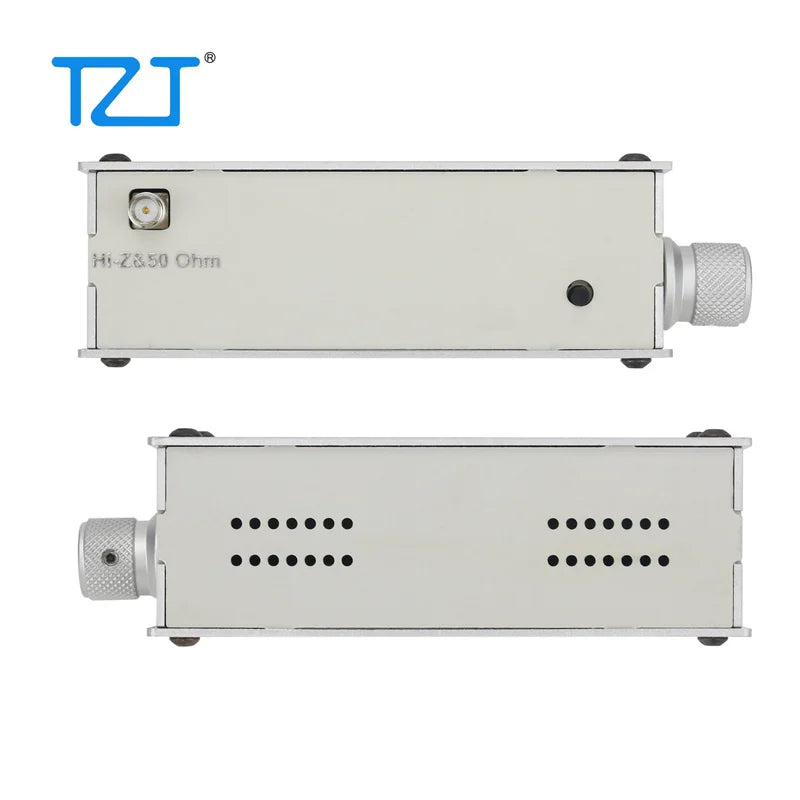

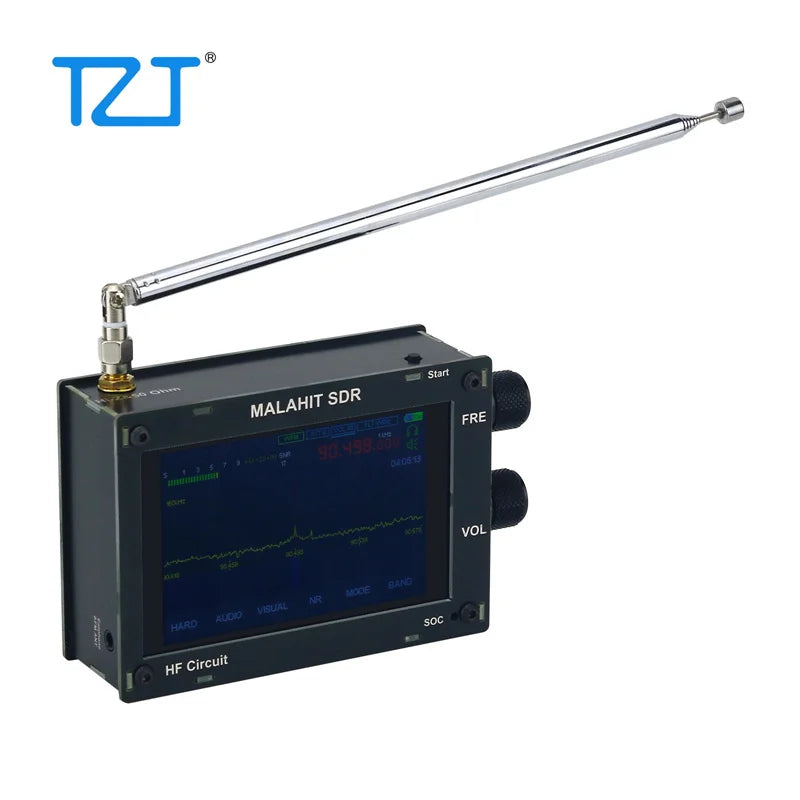

Built-in retractable antenna. To have a better listening effect, this unit reserves an external antenna SAM female connector, and you can connect a better antenna. A power-off button is added deliberately. Using high-quality speakers, 80 is the maximum designed volume, please not exceed 80. The sound effects are carefully designed, not harsh when listening to short waves, and the sound quality will be more pleasant when listening to radio shows, with a dust-proof net speaker outlet. All parts are well-designed, including the position of the lanyard, and many adjustments have been made for aesthetics and convenience.

Package Included:
- 1 x Set of Malachite SDR Receiver(Silver/Black)

Note:
- This version comes without any expansion board.

With expansion board option： TZT Hifi Audio Malachite SDR 50KHz-2GHZ DSP SDR Receiver SDR Radio AM/SSB/NFM/WFM w/ Speaker Black/Silver

Advantages:
1. 3.5-inch capacitive screen
2. Built-in rechargeable lithium battery
3. 4-layer PCB board. Better sensitivity
4. Built-in expansion board, medium wave and short wave performance is better than other version

Features:
- Malachite DSP SDR Receiver
- Capacitive touch screen
- Flash via USB cable
- Supported frequency range: 50KHz-2GHz (200MHz-400MHz is blocked by the author)
- Demodulation mode: AM, SSB, NFM, WFM

Product Parameters:
1) The radio is constructed based on the SDR principle, and the function is determined by loaded software
2) The frequency range is from 50KHz-2GHz
3) All types of analog modulation: AM, SSB (LSB USB), NFM, WFM
4) Powerful functions: variable filter width, adaptive noise suppressor, threshold noise suppressor, Noise Blanker (AGC_Equalizer)
5) Use fully functional chip msi001
6) Powerful stm32h743 with a clock frequency of 480MHz is applied
7) 3.5-inch IPS display with touch screen
8) There is a built-in UHF
9) Control 2 encoders with buttons and touch screen
10) The power supply is supplied by the external TYPE-C (for Huawei mobile phone) interface, which can be charged by TYPE-C. The internal lithium battery has a large capacity of 5000mAH (suitable for outdoor use)
11) The current consumption when listening to headphones is 300mA
12) Built-in receiving module In order to improve the HF reception on the antenna, an additional board with a source follower has been developed. The board will be built into the standard receiver design
13) Connect to the computer via USB, you can transmit CAT, IQ and audio
14 160 kHz span, with scalability
15) Sensitivity-Under the condition of up to 250MHz, s/w is 0.3μV = 10dB.
16) Due to the characteristics of the msi001 chip used, the dynamic blocking range is about 85dB.
17) With backlight control
18) Built-in telescopic antenna, exclusive design
19) Product dimensions: 122 x 103 x 29.5mm/4.8 x 4.1 x 1.2"

Design Details:
The stability of the screen fixation, the position of knobs, and selected materials. Built-in retractable antenna. To have a better listening effect, this unit reserves an external antenna SAM female connector, and you can connect a better antenna. A power-off button is added deliberately. Using high-quality speakers, 80 is the maximum designed volume, please not exceed 80. The sound effects are carefully designed, not harsh when listening to short waves, and the sound quality will be more pleasant when listening to radio shows, with a dust-proof net speaker outlet. All parts are well-designed, including the position of the lanyard, and many adjustments have been made for aesthetics and convenience.

Package Included:
- 1 x Malachite SDR Receiver (Black/Silver)
- 1 x Antenna

Note:
- This version comes with expansion board.
