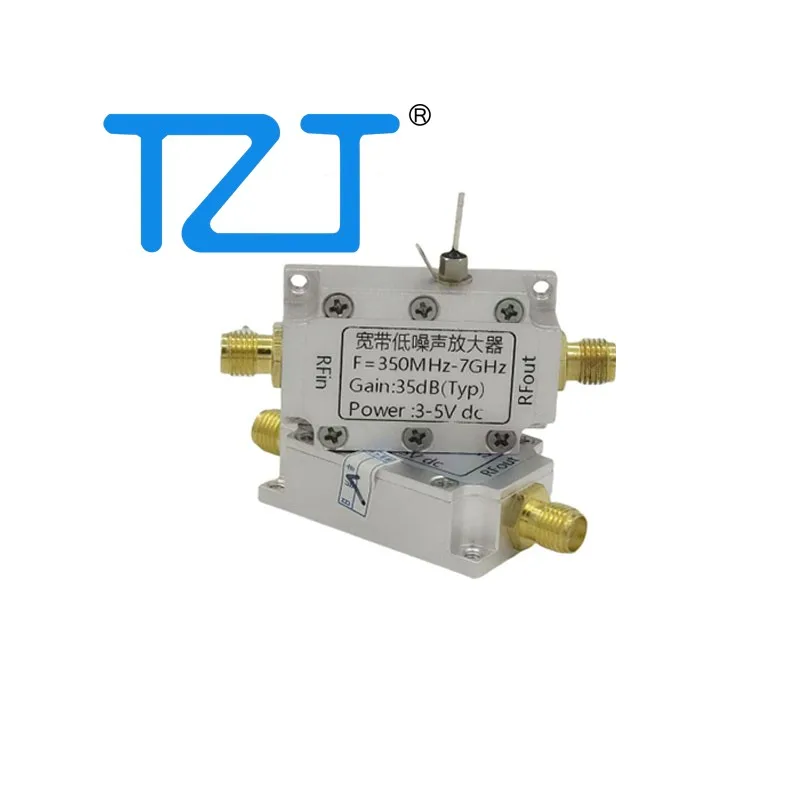

TZT 350MHz - 7GHz LNA Low Noise Amplifier 35dB Gain Wideband RF Amplifier Module without Power Supply Module
Description:
- This amplifier is designed for general frequency bands, such as broadband bottom noise amplifier developed for receiving devices for SDR reception UHF, 868MHz, 915MHz, 1090MHz, 1420MHz, for Beidou, GPS, GLONASS, Galileo, navigation positioning, 2.4GHz image transmission, 5.1GHz/5.8GHz image transmission. High flatness and high gain within the band.
Specification:
- LNA working frequency: 350MHz - 7Ghz
- Input and output impedance: 50ohms
- Gain: 35dB (typ.)
- Working voltage: DC 3 - 5V
- Working current IDD: 110mA at 5V
- Noise figure: 1.1dB (typ.)
- Output P1dB: +18dBm at 5500MHz
- Output IP3: Pout = +2dBm/tone, Δf = 1MHz (+ 35.5dBm)
- RF input power: - 15.0dBm
- Input return loss: 10dB
- Output return loss: 9dB
- Connector type: SMA female connector
- Case material: aviation aluminum alloy
- Net weight: 20g
- Product size: 36 x 22 x 11mm
Precaution:
- The module must first connect the input terminal (RFin) and output terminal (RFout), and finally connect the DC power supply.
- When supplying DC power to the module, make sure to connect the positive and negative DC poles correctly. Don't reverse connect it. Otherwise, it will cause module damage.
Package Included:
- 1 x Low Noise Amplifier
Note:
- DC power supply module is not included, please prepare it by yourself.
