Description

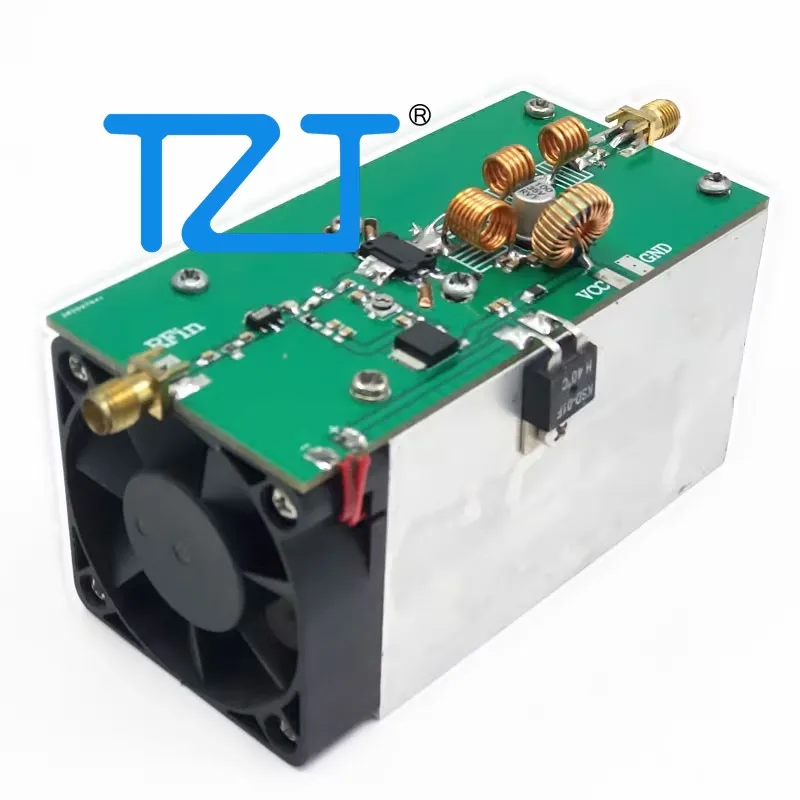

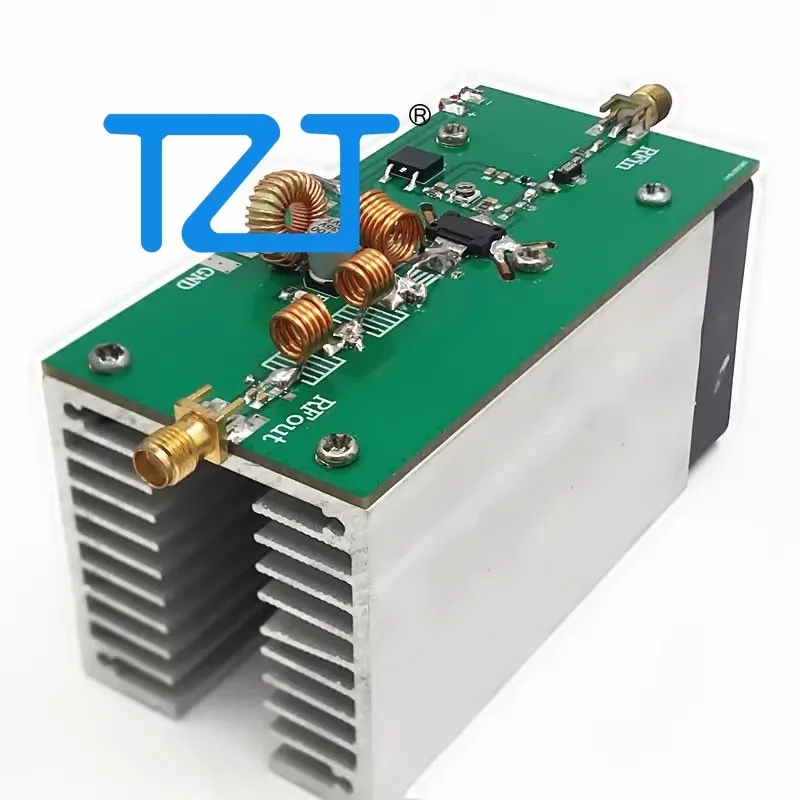

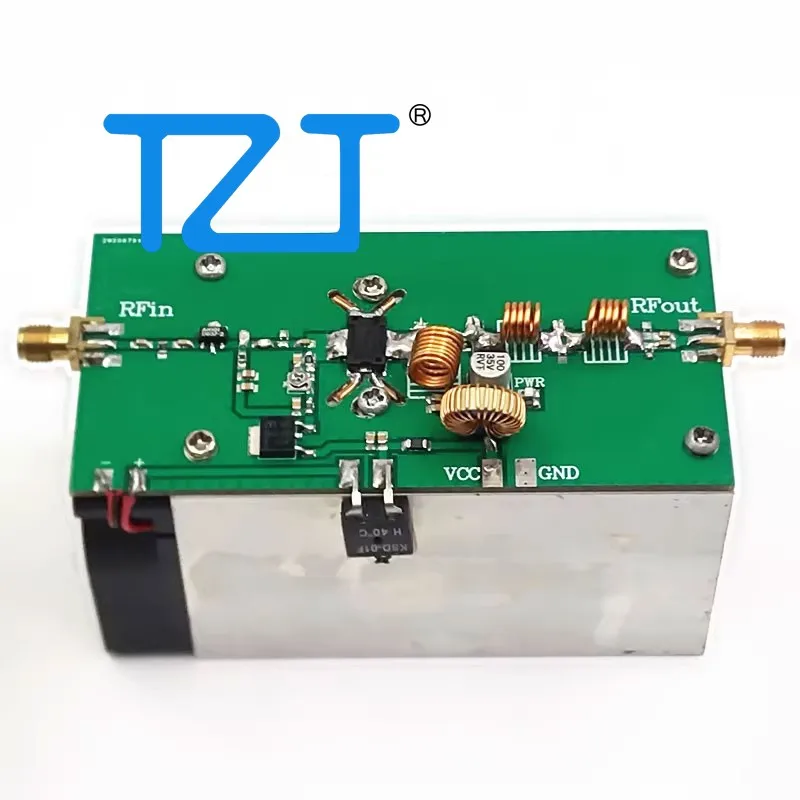

TZT 225MHz 25W 170-270MHz RF Power Amplifier Module RF Power Amp with 30dB Power Gain and Cooling Fan
Technical Specifications:
* Operating Frequency: 225 MHz (170-270 MHz)
* Input Power: 12d-117dBm
* Output Power: 44.5dBm (25 W)
* Power Gain: 30dB
* Supply Voltage: 12-18V
* Supply Current: 3.0A (varies with output power)
* System Impedance: 50 Ohms
* Connector Type: SMA-K
* Cooling Method: Intelligent temperature-controlled fan
* Dimensions: 100 mm (L) × 50 mm (W) × 50 mm (H)
* Weight: 220g
* Note: Do not operate under no-load conditions or with severely mismatched loads while powered on.
Attention:
* Before using this RF amplifier module, ensure that all instruments and equipment share a common ground (i.e., no potential difference exists between them). Then connect the devices using RF cables, and always connect a load. Operating without a load is strictly prohibited, especially for power amplifiers.
* Make sure to use a proper antenna. When using an antenna as a load, it is crucial to ensure impedance matching at the operating frequency (usually requiring a Voltage Standing Wave Ratio (VSWR) of less than 2.0). Do not use antennas such as telescopic antennas, copper wire antennas, or extremely cheap antennas, as these do not have a defined impedance.
* It is recommended to use a linear power supply, especially when using low-noise amplifiers. A switching power supply generates significant noise, which can couple into the amplifier circuit. Therefore, do not use switching power supplies; use a linear power supply or batteries instead.
* Batteries are not included in the package.
Packing List:
* 1 x RF Amplifier
Packaging Details:
* Weight: 0.4kg
