Description

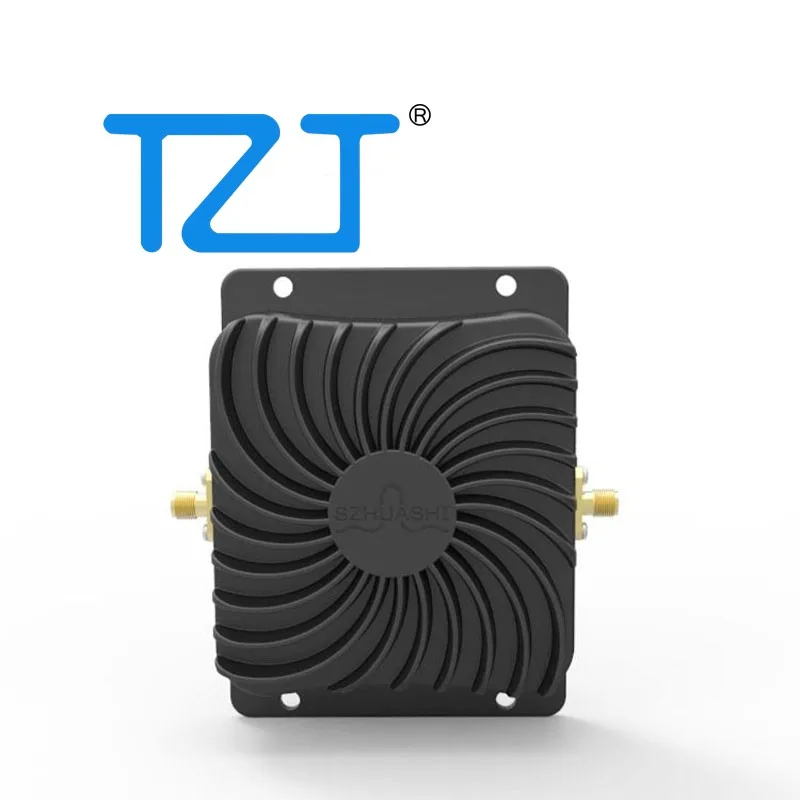

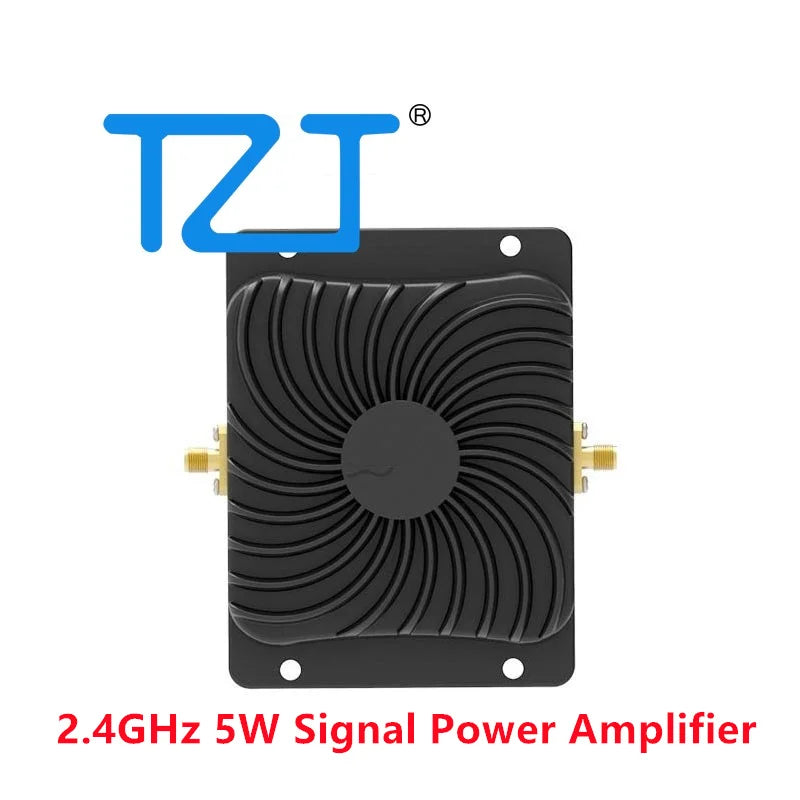

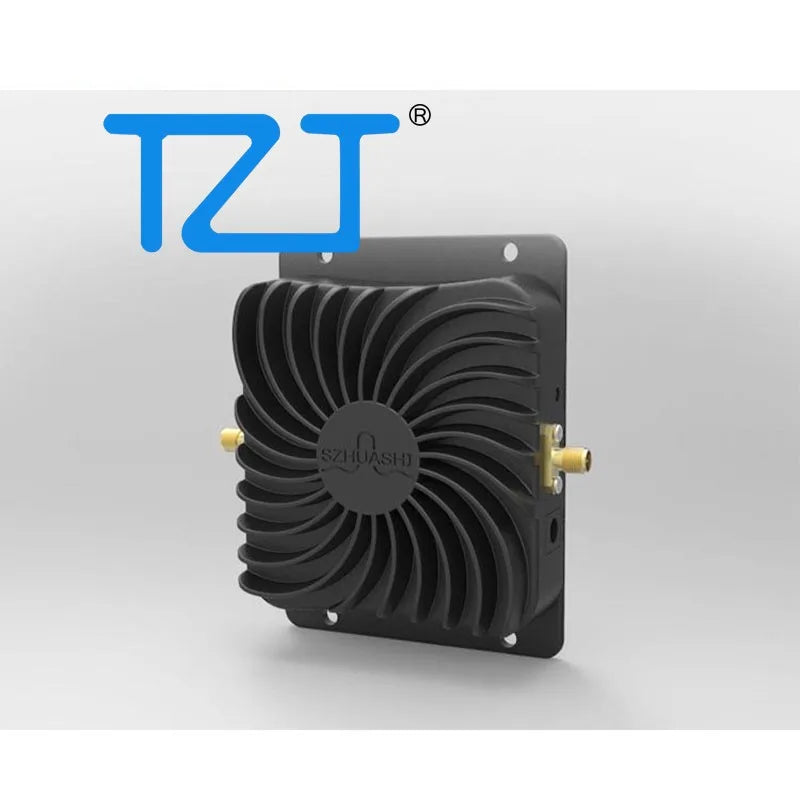

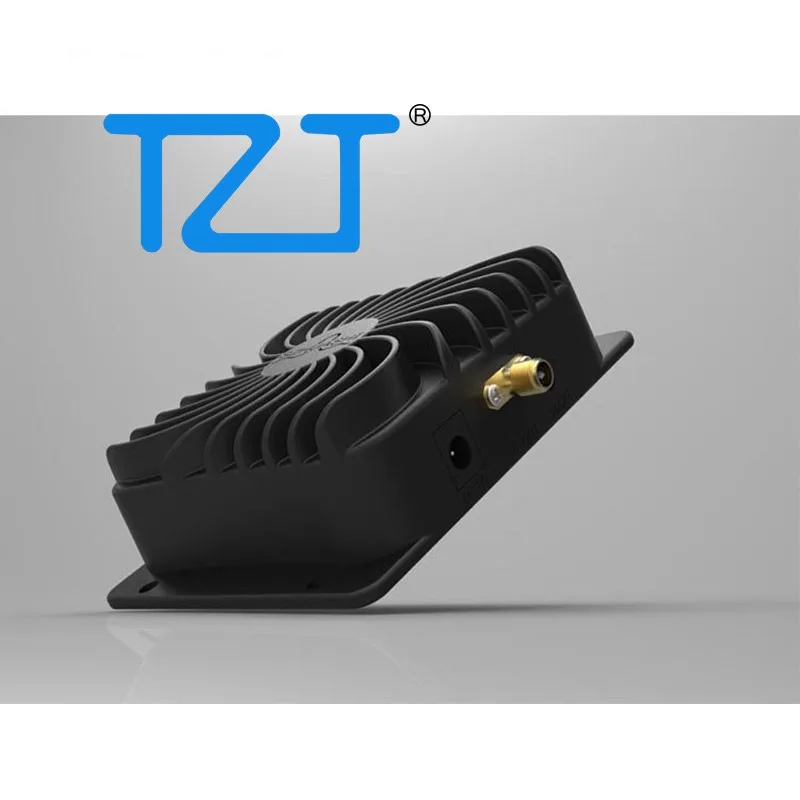

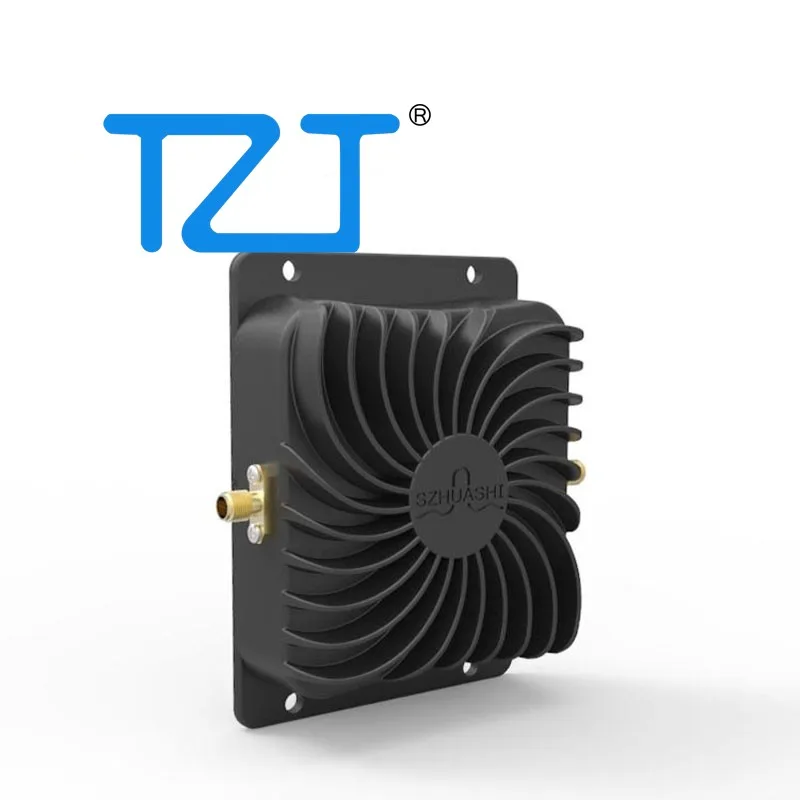

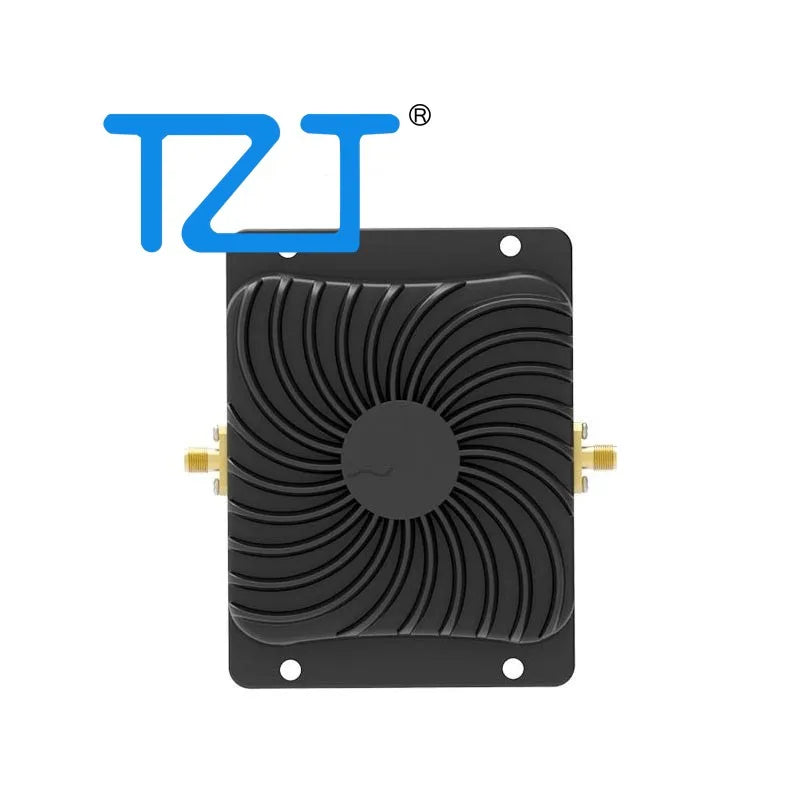

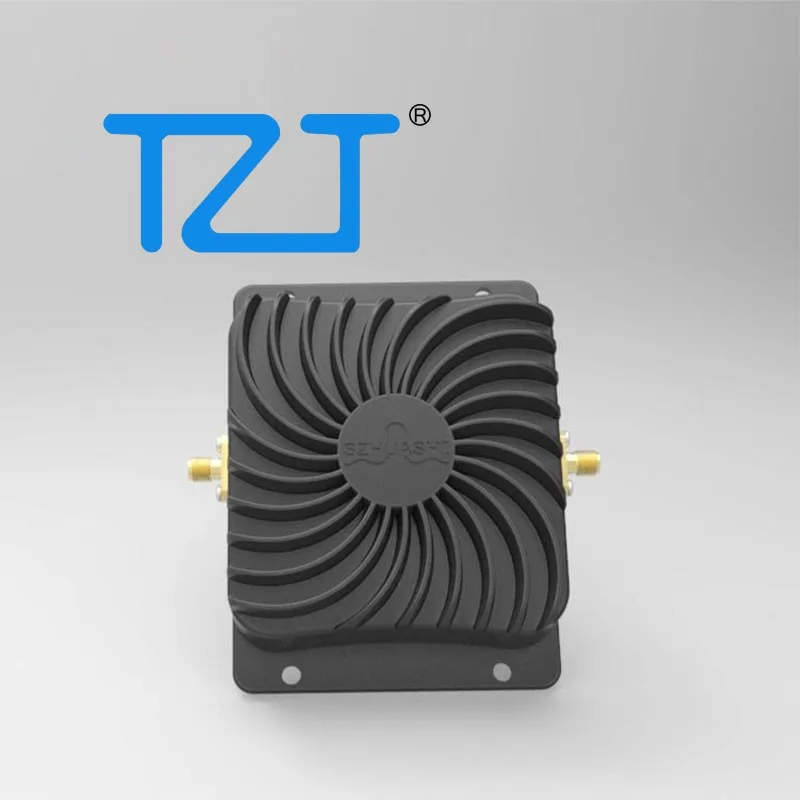

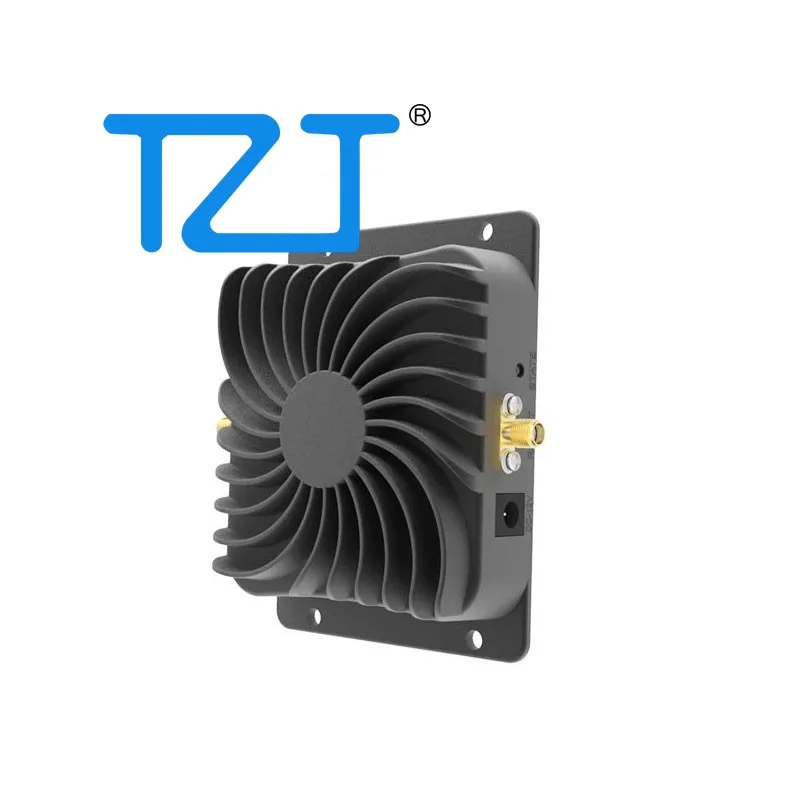

TZT 2.4GHz/5.8GHz 5W WLAN Bidirectional Signal Power Amplifier AP Engineering Grade Amplifier for WiFi Signal Coverage Enhancement
Features:
- The transmission gain is 13dB, which can increase the transmission power by 20 times and extend the communication distance by 3 times.
- The noise coefficient is less than 2.513dB, which can improve the product's receiving sensitivity and expand the receiving distance.
- The transmission power is 5000mW, which can increase the coverage area of the product.
- Ultra wide power supply voltage, input range of 6-55V, convenient for engineering network deployment.
- The expandable working frequency band is 2.4GHz, and the coverage range of products with TDD working mode is available.
- Plug in and use, no software settings required.
- Fan shaped metal casing enhances heat dissipation performance.
- Amplifier is widely used in homes, hotels, office buildings, shopping malls and other places.
Specification:
- Model: HS2405X1
- Noise ratio: <2.5dB
- TX switch delay: < 1uS
- LED indicator status: green for transmitting; res for receiving; orange for transmission and reception switching
- Working temperature: -40℃ to 70℃
- Working humidity: < 95%RH
- Product size: 103.5 x 96.5 x 30.5mm
- Net weight: 0.3kg
- Working frequency band: 2.4 - 2.5GHz/5.7 - 5.85GHz
- Working voltage: 6 - 55V
- Receiving gain: 25dB±1
- Input power: 3dBm (min.); 20dBm (max.)
- Maximum output power: 37dBm (5W)
- EVM: 3% at 29dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz
- DC power consumption: 575mA at Pout 29dBm 12V
Installation Instruction:
- Remove the power supply of the router.
- Remove the antenna of the router.
- Connect the signal amplifier and router with the RG316 feeder that comes standard with the product.
- Twist the antenna onto the port of the signal amplifier.
- First power the signal amplifier, then power the router.
Package Included:
- 1 x Signal Power Amplifier
- 1 x Feeder
- 1 x Antenna
- 1 x Power Supply
