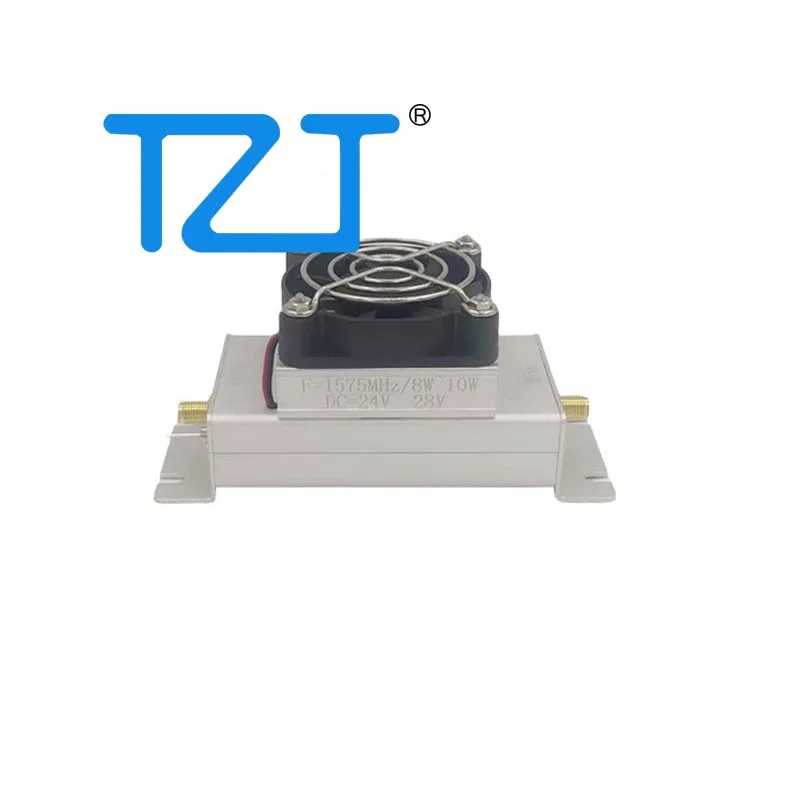

TZT 1575MHz 8W–10W 30dB RF Power Amplifier Module RF Power Amp with 1500MHz–1650MHz Operating Frequency

Save $34.86
SKU: TZT 1575MHz 8W–10W

Price:
$64.72 $99.58

Tax included Shipping calculated at checkout

Stock:
In stock

Description




TZT 1575MHz 8W–10W 30dB RF Power Amplifier Module RF Power Amp with 1500MHz–1650MHz Operating Frequency

Specifications:
* Operating Frequency: 1500MHz–1650MHz
* Input/Output Impedance: 50Ω
* Gain: 30 dB
* Input power: 10dBm, supply voltage: 24V, output power: 39dBm (8W)
* Input power: 13dBm, supply voltage: 28V, output power: 40dBm (10W)
* Power Supply Voltage (DC): 24V–28V
* Operating Current: 1A (typical)
* Connector Type: SMA Female
* Cooling: Heat sink + always-on cooling fan
* Dimensions: 110mm × 50mm × 20mm
* Enclosure Material: Aviation-grade aluminum alloy
* Weight: 130g


Attention:
* Ensure the input (RFin) and output (RFout) ports are connected first, and only then connect the DC power supply.
* When supplying DC power to the module, make sure the positive and negative terminals are connected correctly. Do not reverse the polarity, as this can damage the module!


Packing List:
* 1 x RF Amplifier


Packaging Details:
* G.W.: 0.22kg
